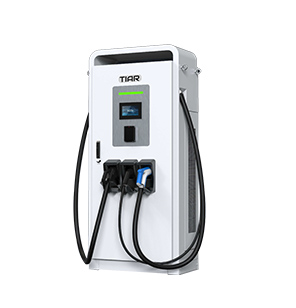

DC Charger 40, 60, 80kW

Overview

  • Pengisi daya 80kW dilengkapi dengan 2 konektor pengisi daya DC, yang mendukung output maksimum 1000V dan daya penuh 80kW. Untuk mengisi daya lebih banyak EV secara bersamaan, konektor Tipe 2 dengan 22kW bersifat opsional untuk mewujudkan tujuan ini. Cocok untuk berbagai skenario pengisian daya dan juga memenuhi sebagian besar kebutuhan pengisian daya kendaraan listrik di pasar.
INPUT
Input 3P+N+PE
Input Voltage AC 380~400V
Frequency 50/60Hz
OUTPUT
Output Voltage CCS2 : 200-1000 Vdc
CHAdeMO : 200-500Vdc
Rated power 40-80KW DC
22kW AC
Max Current CCS2 : 200A
CHAdeMO : 125A
Type2：32A
STANDARDS
Efficiency 96% @ peak efficiency
Connector Type IEC 62196
System Standards IEC 61851
OTHERS
Energy meter Highprecision meter
Number of connectors Up to3
(CCS2+CHAdeMo+Type2 or
CCS2+CCS2+Type2)
Network Interface 4G/LAN/WiFi
Size W850*D450*H2030 mm
Protection level IP55/IK10
Weight ≤350KG
Cable length 5m
Communication protocol OCPP1.6J/2.0(Upgrade)
Display Screen 7 inch
Method of payment QR Code/ RFID / Application
Language English
COOLING SYSTEM
Cooling method Forced air cooling
Full power operating temperature -25 ~ 50 ℃
SPECIFICATIONS Connector A (CCS2/ CHAdeMO) Connector B (CCS2/ CHAdeMO) Connector AC Type 2
TIAR DC Charger 40KW (Up to 3 Connector) Single : 40KW
Both : 20KW		 Single : 40KW
Both : 20KW		 22 KW
TIAR DC Charger 40KW (Up to 3 Connector) Single: 60KW
Both : 40KW		 Single: 60KW
Both : 20KW		 22 KW
TIAR DC Charger 40KW (Up to 3 Connector) Single : 80KW
Both : 40KW		 Single : 80KW
Both : 40KW		 22 kW
SPECIFICATIONS Connector A (CCS2/ CHAdeMO) Connector B (CCS2/ CHAdeMO) Connector AC Type 2
TIAR DC Charger 40KW (Up to 3 Connector) 200A/125A 200A/125A 32 A
TIAR DC Charger 40KW (Up to 3 Connector) 200A/125A 200A/125A 32 A
TIAR DC Charger 40KW (Up to 3 Connector) 200A/125A 200A/125A 32 A
